HW-CMM Connector, HW-321V051F46,2mm Pitch.

Name: HWCMM Connector HW321V051F462mm Pitch
Brand: HIGH WOOD
Price: 10 USD

Buy cheap HW-CMM Connector, HW-321V051F46,2mm Pitch. product

Brand Name : HIGH WOOD

Model Number : HW-321V051F46

Certification : AS9001

Place of Origin : China

MOQ : 100PCS

Price : 10＄--150＄

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs per month

Delivery Time : 2--9 weeks

Packaging Details : standard export package

MECHANICAL : Mechanical operations:Up to 2500 cycles contact inssertion and withdrawal force:2 N max./0.2n min.oer ciontact Contact retention in insulator:10 n min Contact replacement in insulator:3 cycles

P.C.LF CONTACTS(Female) : Body:copper alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ

INSULATOR : Special PPS UL 94-V0

P.C.LF CONTACTS(Male) : Male:tail:copper alloy/Ni+Au flash 0,1µContact area:copper alloy/Ni+Au>1 µ

CRIMP LF CONTACTS : Male: Body:copper alloy/Ni+Au>1µ Female: Body:copper alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ

FIXING HARDARE : Jackscrew:Stainless steel Latch:Bertllium copper/plated nickel

Contact Now

321V051F46:

The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications.

Part numbering:

HW-CMM Connector, HW-321V051F46,2mm Pitch.

RACK INTERCONNECTION:

Male connectors cmm series 320&340 rack

Type of contact in connetor PCB contacts contacts on cable

Type of PCB mount straight 90° straight 90°

PCB chickness(mm)

0.8min

2max

1.5min

4max

0.8min

2max

1.5min

4max

0.8min

2max

1,5min4max

4max

Floation

No fixing on pcb

Fixing M38 M38H M36 M36H F58 F58H F59 F59H F48 H11 M35 M39 F48 H11 M3xx F40

0.8 min

M35

2max

M35H

straight

1.5min

M39

4max

M39h

90°

4max

H11

F48

No fixing

On PCB

F40

Straight

0.8min

2max

M35

1.5min

4max

M39

90°

4max

H11

F48

floating

M3xx

NO fixing

On PCB

No fixing on PCB

F40

REFERENCE	ASSEMBLY ON PCB	OVERALL DIMENSIONS	RECOMMENDATION
F4XX xx = (PCB thickness + 0,2 mm) x 10 Example : for 3 mm PCB, the reference is F432 (3 + 0,2) x 10 = 32 xx = 32			F4XX : CMM female : S-C (E : straight) CMM male : S-C (E : straight)
F41			F41 : CMM female : Y-YL-S-C-E (D : straight) CMM male : S-C-E
F52			F52 : CMM female : Y-S-C (D-E : straight) CMM male : S-C (E : straight)
F52H			F52H : CMM female : Y (D : straight)
F45			F45 : CMM female : YL-S-C (D-E : straight) CMM male : S-C (E : straight)
F45H			F45H : CMM female : YL (D : straight)
F42			F42 : CMM male : Y (D : straight) F42H : CMM male : Y (D : straight)

Product showing:

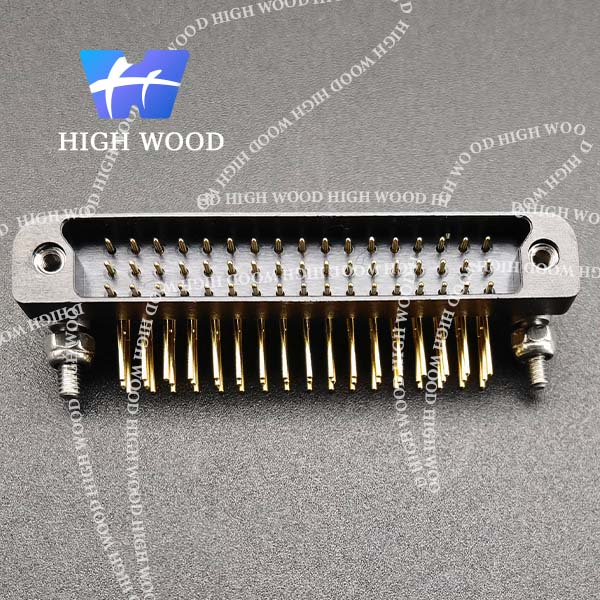

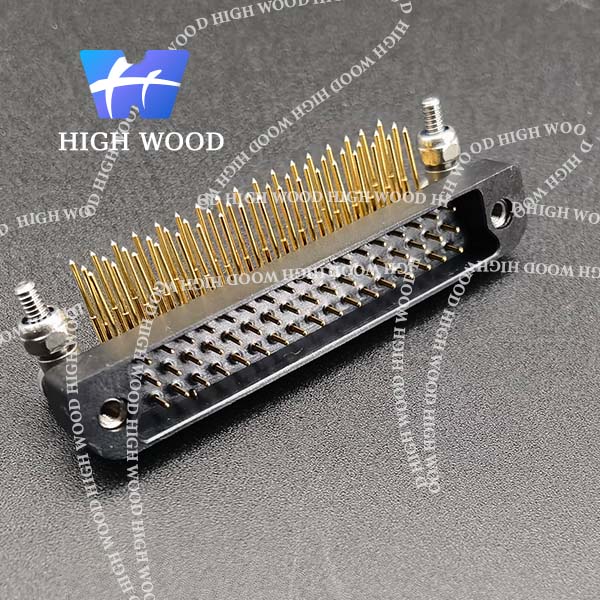

HW-CMM Connector, HW-321V051F46,2mm Pitch.

HW-CMM Connector, HW-321V051F46,2mm Pitch. Images
