HW-221YL30F24H,HW-CMM Connectors HW-M80 Connectors Micron-D Connectors Nano-D Connectors

Name: HW221YL30F24HHWCMM Connectors HWM80 Connectors MicronD Connectors NanoD Connectors
Brand: HIGHWOOD
Price: 10 USD

Buy cheap HW-221YL30F24H,HW-CMM Connectors HW-M80 Connectors Micron-D Connectors Nano-D Connectors product

Brand Name : HIGHWOOD

Model Number : HW-221YL30F24H

Certification : AS9001

Place of Origin : China

MOQ : 100pcs

Price : 10$-150$ each

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100，000pcs per month

Delivery Time : 2-9weeks

Packaging Details : Standard export package

Contact : Copper alloy nickel bottom gold plating 0.75u

Insulator : fiberglass reinforced PPS; UL94-V0

Accessory : stainless steel

Insulation resistance : ≥1000MΩ

Endurance : 500cycles

Operating temperature : -60 C-260 C

Contact Now

HW-221YL30F24H

HW-221YL30F24H has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications,NICOMATICs pecializes in the design,development and manufacture of electronic connectors.

How to order:

	22	1	Y	nn	Fxx
22 series
Code: 1——Socket 2——Plug
Terminal mode of the contact parts: Y ——Vertical welding plate,pin3mm YL ——Vertical welding plate,pin4.5mm
Number of LF contacts

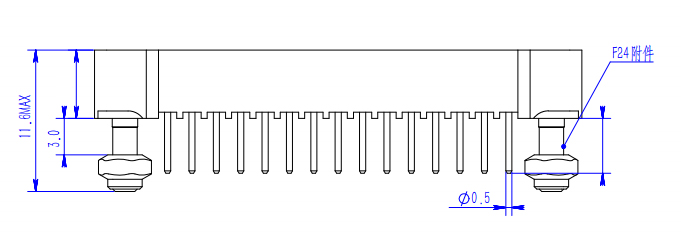

Attachment combination code: F22 ——Vertical welding plate,δ2,Round nut F22H ——Vertical welding plate,δ2,Hexagon nut F24 ——Vertical welding plate,δ4,Round nut F24H ——Vertical welding plate,δ4,Hexagon nut

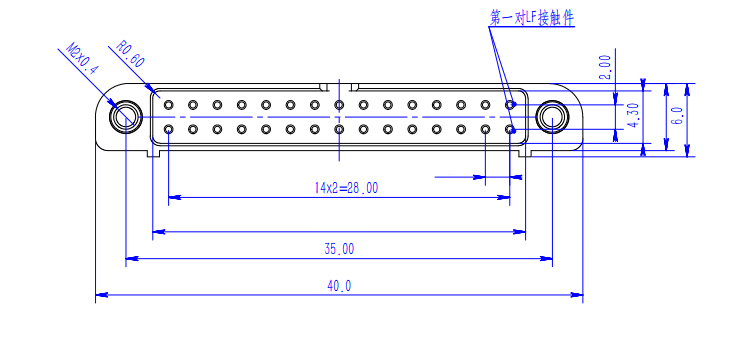

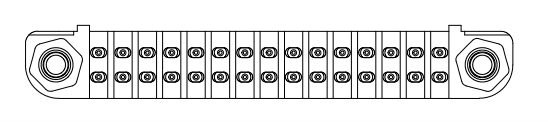

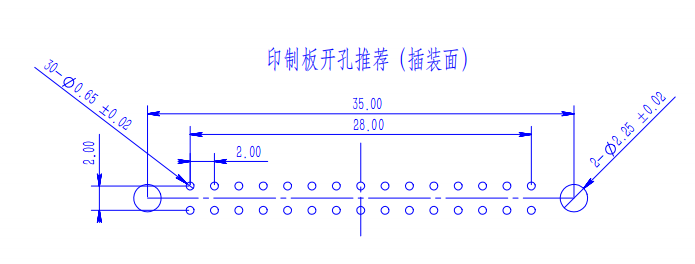

Product pictures:

HW-221YL30F24H,HW-CMM Connectors HW-M80 Connectors Micron-D Connectors Nano-D Connectors

Product Details:

Material and coating
Insulator	Glass fiber reinforced PPS,UL94-V0(Irradiation resistance, no moisture absorption, ozone resistance)
Contact	LF contact: Copper alloy nickel bottom gold plating 0.75u
Accessory	Stainless steel
Electrical
Withstand pressure (sea level)	600V AC/DC
Insulation resistance	≥1000MΩ
Contact	Signal contacts: working current25 ℃,≤3A； working current 85℃,≤2.2A；contact resistance ≤10mΩ
Mechanical
Endurance	500cycles
Environmental
Operating temperature	-60 ℃ - 260 ℃

HW-221YL30F24H
