HW-M80 Connectors,HW-M80-5413442.

Name: HWM80 ConnectorsHWM805413442
Brand: HIGH WOOD
Price: 10 USD

Buy cheap HW-M80 Connectors,HW-M80-5413442. product

Brand Name : HIGH WOOD

Model Number : HW-M80-5413442

Certification : AS9001

Place of Origin : China

MOQ : 100PCS

Price : 10＄--150＄

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs per month

Delivery Time : 2--9 weeks

Packaging Details : standard export package

Insulation resistance : ≥1000MΩ

Insulator : Glass fiber reinforced PPS

Accessory : Stainless steel

Endurance : 500cycles

Operating temperature : -55 ℃ - 125 ℃

Contact : Copper alloy nickel bottom gold plating

Contact Now

HW-M80-5413442

The HW-M80-series conectors has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications, pecializes in the design,development and manufacture of electronic connectors.

How to order:

HW	M80-541	XX	XX	X
M80-541 series
TOTAL No. OF CONTACTS 04,06, 10, 12, 14, 18, 20, 26, 34, 42, 50,
FINISH 05 - GOLD CLIP, GOLD SHELL 42 - GOLD CLIP, I00% TIN SHELL
POTTING WALL HEIGHT BLANK= 5mm A= 1mm

Specification:

Material and coating
Insulating medium	Glass fiber reinforced PPS,UL94-V0 is radiation resistant, non-moisture absorbing and ozone resistant
Contact	LF contact:
Contact	Copper alloy nickel base gold plating
Attachment	Stainless steel
Electrical performance index
Pressure resistance (sea level)	1200V AC/DC
Insulation Resistance	≥1000MΩ
Contact	LF contact: working current 25℃≤3A; Working current 85℃, ≤2.2A; Contact resistance ≤10mΩ
Mechanical performance index
Mechanical life	500 cycles
Environmental performance index
Working Temperature	-55 ℃ to 125 ℃

Product pictures:

HW-M80 Connectors,HW-M80-5413442.

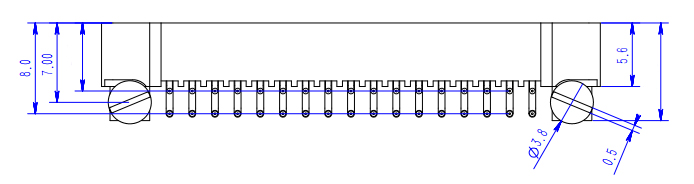

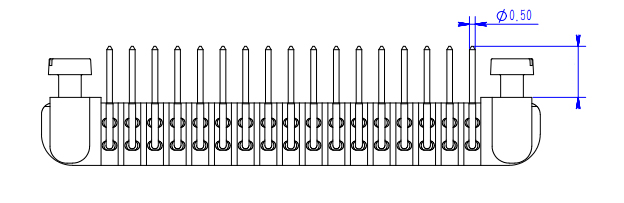

HW-M80-5413442:

HW-M80 Connectors,HW-M80-5413442.

HW-M80 Connectors,HW-M80-5413442. Images
