SMA Series RF Coaxial Connector SMA-JB2

Name: SMA Series RF Coaxial Connector SMAJB2
Brand: HIGH WOOD
Price: 10 USD

Buy cheap SMA Series RF Coaxial Connector SMA-JB2 product

Brand Name : HIGH WOOD

Model Number : SMA-JB2

Certification : AS9001

Place of Origin : China

MOQ : 100pcs

Price : 10$-150$

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100，000pcs per month

Delivery Time : 2-9weeks

Packaging Details : Standard export package

Connector type : SMA Series RF Coaxial Connector

Dielectric Withstand Voltage : 1000V

Ambient Temperature : -55°C～+155°

Insulation Resistance : ≥5000MΩ

Center Conductor : <3mΩ

Outer Conductor : <2mΩ

Contact Now

SMA Series RF Coaxial Connector SMA-JB2

Product introduction

It has the advantages of small size, wide frequency range, reliable mechanical and electrical performance, etc. It is currently the most widely used coaxial RF connector. b. Used in communications, aerospace, navigation, weapon systems and microwave measurement equipment and other fields

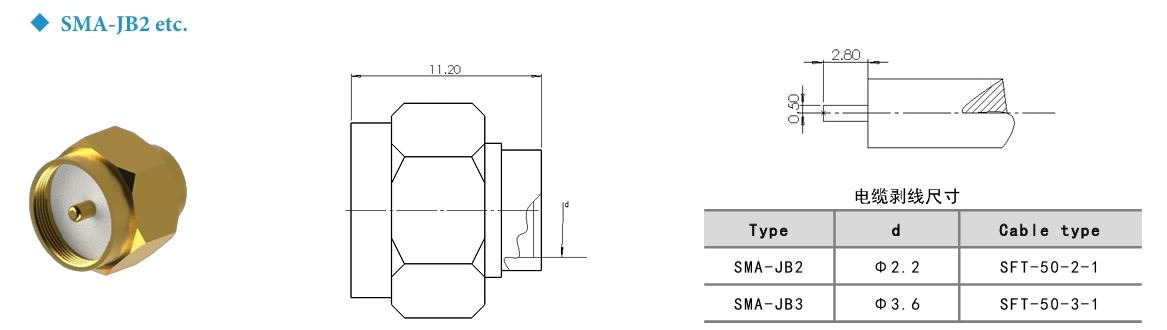

Product Display

SMA Series RF Coaxial Connector SMA-JB2

Main Technical Parameters

Frequency Range Insulation Resistance: ≥5000MΩ

With Flexible Cable 0～12.4GHz Working Voltage: 330V

Semi-Flexible Cable 0～18GHz Dielectric Withstand Voltage: 1000V

Ambient Temperature: -55°C～+155° Contact Resistance:

Characteristic Impedance: 50Ω Center Conductor: <3mΩ

Voltage Standing Wave Ratio Outer Conductor: <2mΩ

With Soft Cable: ≤1.15+0.02F Mechanical Life: 500 Plug And Unplug Times

With Semi-Rigid And Semi-Flexible Cables ≤1.10+0.02F

SMA Series RF Coaxial Connector SMA-JB2

Product pictures:

SMA Series RF Coaxial Connector SMA-JB2
